BENEFITS

  • Uses unused areas;
  • Works off grid and on grid;
  • Works with Li-ion or Gel batteries with capacity of 5,10,15kW;
  • Works with single, three – phase or hybrid inverters;
  • Could be used for EVE charger of electric vehicles;
  • Movable or fixed construction;
  • Unlimited number of constructions can be fixed following or next one by another;
  • Wind resistant bearing structure;
  • No shading and designed wind corridors for cooling;
  • Increases the energy production;
  • Increases the installed capacity per single unit area – using a build up area space;
  • With 2 or 3 modules per row and 4 and more rows above;
  • Easy to assemble/disassemble;

One of its kind - Vertical Photovoltaic System (VPvS)

The Vertical Photovoltaic System main purpose is to use the unused by the standard horizontal power plan spaces and exceed the energy production from a single unit area. Namely because it is designed with vertical placement of the photovoltaic modules, we shortly can call it Solar Energy Wall. Depending on the site the vertical system can be produced with one or two sides with 2 or 3 modules on a row, with 4 or more rows. The Solar Energy Wall types are patented with № 2023113643P.

The vertical system has the following types:

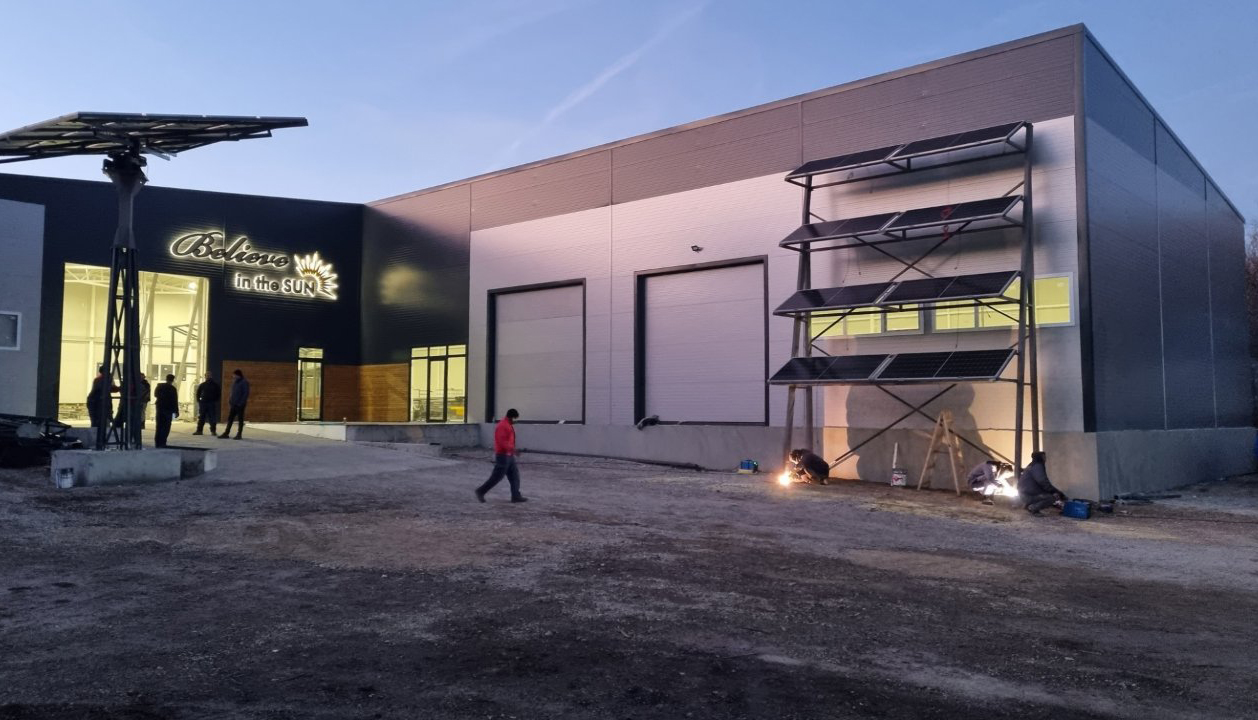

One side vertical system with one lever solar module placement

This system which could be attached to a building’s facades or north facing fence.

  • It could be with 4 or even more solar panel rows depending on the customer requirements;
  • Each row has 2 or 3 modules places;
  • The system can be produced with more free space under the 1-st row and can be used a parking lot and charging EV stations;
  • It could be also be on wheels and if necessary to be moved;
  • Installed capacity starts from 4,4kWp (with 550Wp modules);
  • Different size of solar modules can be mounted from 550Wp and above;
  • Different tilt angle 10⁰ и 20⁰ can be set;

Two-sided orientation Solar Energy Wall

  • It could be with 4 or even more solar panel rows depending on the customer requirements;
  • Each row has 2 or 3 modules places;
  • The system can be produced with more free space under the 1-st row and can be used a parking lot and charging EV stations;
  • It could be also be on wheels and if necessary to be moved;
  • Installed capacity starts from 4,4kWp (with 550Wp modules);
  • Different size of solar modules can be mounted from 550Wp and above;
  • Different tilt angle 10⁰ и 20⁰ can be set;

Two side Solar Energy Wall with crossed sides orientation of the panels

This system can be installed along fences, as parling lots or even on agricultural land.

  • It could be with 4 or even more solar panel double rows depending on the customer requirements;
  • Each row has 2-3 modules places;
  • The system can be produced with more free space under the 1-st row and can be used a parking lot and charging EV stations;
  • It could be also be on wheels and if necessary to be moved;
  • Installed capacity starts from 8,8kWp (with 550Wp modules);
  • Different size of solar modules can be mounted from 550Wp and above;
  • Different tilt angle 10⁰ и 20⁰

The module orientation from its side could have 3 types with 2 or 3 modules as follows:

Top view of one row of single Solar Energy Wall, with two photovoltaic panels arranged in a single plane;

One row of the single Solar Energy System, with two photovoltaic panels arranged at an angle

One row of the single Solar Energy System, with three photovoltaic panels arranged at an angle;
